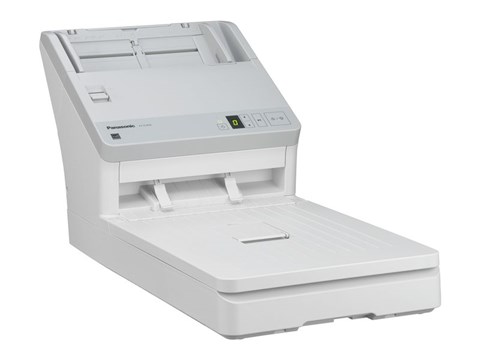

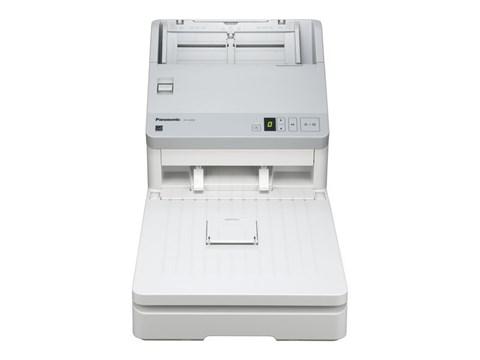

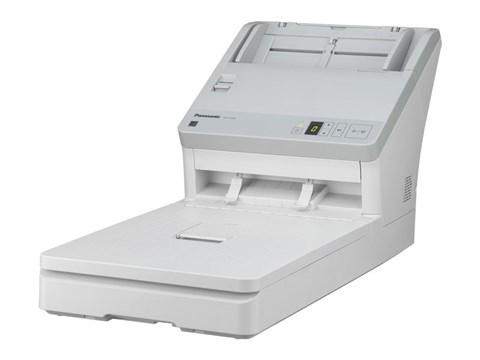

Full Colour Duplex Scanner
KV-SL3056
- A4 Flatbed Scanning
- Fast, Compact & Durable
- Auto Preview / Auto Rescan
- Cards, Passport, Bankbook Scanning (Manual Feed)
Overview
- Duplex Colour Document Scanner (100dpi - 600dpi)
- Scanning Speed up to 45 ppm / 90ipm (Binary / Colour) (300dpi)
- Long paper scanning: 48 x 54mm to 216 x 5,588mm
- Mixed paper and hard card batch scanning (up to 0.76mm in thickness)
- Auto Document Feeder: Up to 100 sheets
- Compatible with ISIS(R) and TWAIN
-
Multi-Crop Function - Place various sized documents on the flatbed and scan them all at once, then crop whatever parts you need
- Panasonic Image Enhancement Technology: Colour Automatic Cropping, Colour Automatic De-Skew & Auto Colour / Binary Distinction, etc.
Specifications
 Full Colour Duplex Scanner | |||
|---|---|---|---|
| High Speed Scanner | |||
| General | |||
| Scanning Face | Duplex | ||
| Scanning Method | Colour CIS (600 dpi) Background: Black/White | ||
| Scanning Speed | Binary | Simplex: 45 ppm (300 dpi) Duplex: 90 ipm (300 dpi) | |
| Colour | Simplex: 45 ppm (300 dpi) Duplex: 90 ipm (300 dpi) | ||
| Image Output | Binary/ Gray Scale/ Colour / MultiStream | ||
| Resolution | 100 - 600 dpi | ||
| Document | Size (ADF) | Max:216 x 5,588mm , Min:48 x 54mm | |
| Weight | Auto Feed :20-413 g/m2 Manual Feed : 20-546 g/m2 | ||
| Capacity | 100 sheets | ||
| Thickness | 0.04 - 0.5 mm (card- 0.76 mm) | ||
| Interface | USB 2.0 | ||
| Power Requirment | AC 220-240 V 50/60 Hz | ||
| Power Consumption | Scanning Mode | 37 W | |
| Idle Mode | 10 W | ||
| Sleep Mode | Less than 1.8 W | ||
| External Dimensions (WxDxH) | 300 x 650 x 308 mm | ||
| Weight | 6.7 kg | ||
Support
Available at
Peninsula Centre Customer Service & Experience Centre
Tel enquiries: 2313 0666
Support
Hotline: 2313 0666
Enquiry form
- Design and specification are subject to change without notice.
