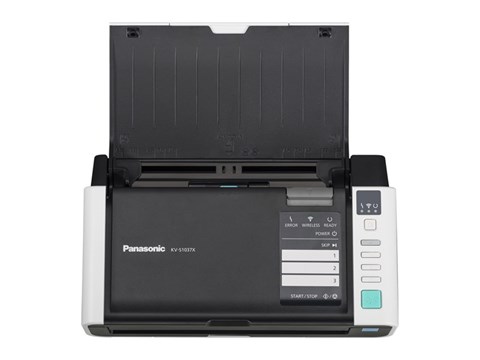

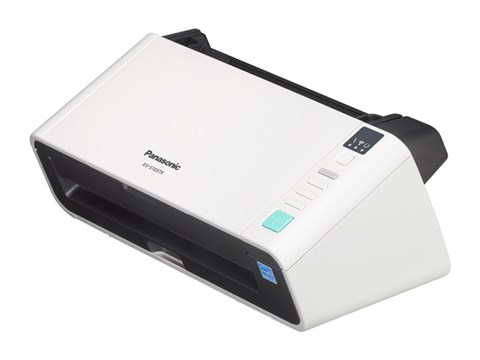

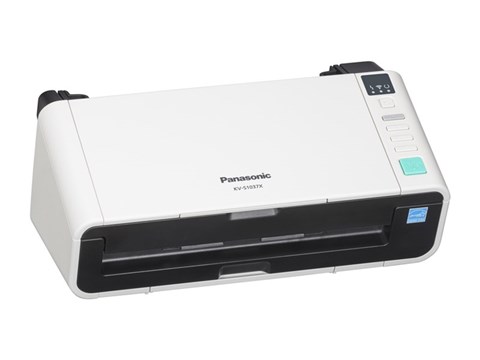

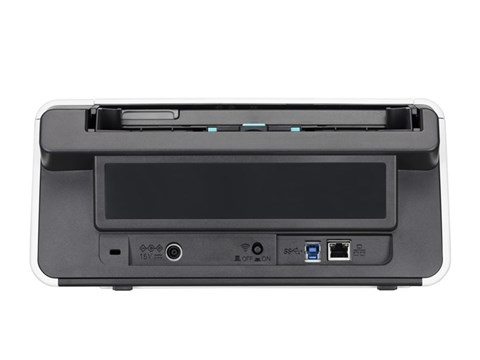

Full Colour Duplex Network Scanner
KV-S1037X
- Shareable and cost saving with network connectivity
- Space saving with compact design
- Versatile scanning with various scanning options
Overview
- Duplex Network Colour Document Scanner (100dpi -600dpi)
- Scanning Speed up to 30 ppm / 60 ipm (Binary/Colour)(300 dpi)
- Long paper scanning: 48 x 54 mm to 216 x 356 mm / umlimited (Manual feeding)
- Mixed paper and hard card batch scanning (up to 0.76 mm in thickness)
- Auto Document Feeder: Up to 50 sheets / 3 hard cards
- Compatible with ISIS(R) and TWAIN
- Panasonic Image Enhancement Technology: Colour Automatic Cropping, Colour Automatic De-Skew & Auto Colour / Binary Distinction, etc.
Specifications
 Full Colour Duplex Network Scanner | |||
|---|---|---|---|
| High Speed Scanner | |||
| General | |||
| Scanning Face | Duplex | ||
| Scanning Method | 1-Line CIS (Contact Image Sensor) | ||
| Scanning Speed | Binary | Simplex: 30 ppm (300 dpi) Duplex: 60 ipm (300 dpi) | |
| Colour | Simplex: 30 ppm (300 dpi) Duplex: 60 ipm (300 dpi) | ||
| Image Output | Binary / Gray Scale / Colour / MultiStream | ||
| Resolution | 100 - 600 dpi | ||
| Document | Size (ADF) | Max: 216 x 356mm / unlimited (Manual feeding), Min: 48 x 54mm | |
| Weight | 20-413 g/m2 | ||
| Capacity | 50 sheets | ||
| Thickness | card--0.76mm | ||
| Interface | USB 3.1 Gen1 LAN (10Base-T/100Base-TX/1000Base-T) Wireless LAN (IEEE802.11n/g/b) | ||
| Power Requirment | AC 100-240 V, 50/60 Hz | ||
| Power Consumption | Scanning Mode | 26 W | |
| Idle Mode | 6 W | ||
| Sleep Mode | 2 W | ||
| External Dimensions (WxDxH) | 303 x 177 x 137mm | ||
| Weight | 2.7kg | ||
