1片式DLP投影機
PT-REQ10
HK$209,000
-
光度輸出: 10,000 流明 (中央部份)；對比度 : 20000:1
-
解像度 :4K (3840x2400)(Quad Pixel Drive: ON)
-
採用Laser diode 光源，可長時間使用
產品概覽
- 光度輸出: 10,000 流明 (中央部份)；對比度 : 20000:1
- 解像度 : 4K (3840x2400)(Quad Pixel Drive: ON)
- 用Laser diode 光源，可長時間使用
- 240Hz 畫面更新率(Refresh rate)
- 光亮色彩控制技術,可同步平衡多部投影機之亮度色彩
- 備用輸入功能，主輸入訊源故障時可自動切換至備用訊源
- 載置全新DIGITAL LINK功能，兼容HDbaseT技術的數碼連接，可以單－電纜傳送數碼訊號 (最長100米)至投影機
- 內置幾何調整功能，可投射畫面至弧型表面而不會失真，更可選配升級套件ET-UK20，提高幾何調整功能
- 可選購數碼介面盒ET-YFB100G 或 ET-YFB200G
規格
 1片式DLP投影機 | |||
|---|---|---|---|
| 投影機 | |||
| 一般規格 | |||
| 面板 | 0.8" DLP 底板 x 1 | ||
| 燈泡 | N.A. (Laser diodes 光源) | ||
| 亮度 | 10,000流明(中央部份) | ||
| 鏡頭 | 選配 | ||
| 對比度 | 20,000:1 | ||
| 解像度 | 4K (3840x2400)(Quad Pixel Drive: ON) | ||
| 兼容視頻訊號 | -- | ||
| 影像大小(對角) | 70" - 700" | ||
| 鏡頭移動功能 | 垂直 ±60%, 橫向 ±29% (個別鏡頭移動範圍請參閱宣傳單張) | ||
| 梯型矯正範圍 | 垂直 ±40° (個別鏡頭矯正範圍請參閱宣傳單張); 橫向±40° | ||
| 重量 | 大約 28.8 kg | ||
| 大小(闊x高x深) | 498 x 212 x 648 mm | ||
| 功率 | 980W | ||

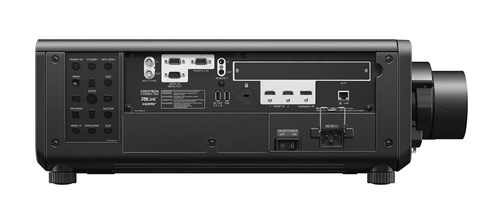

| 接駁終端 | HDMI x 2; DisplayPort x 1 Multi Porjector Sync IN (BNC x 1); Multi Porjector Sync OUT (BNC x 1) SERIAL IN (D-sub 9-pin (female) x 1) ; SERIAL OUT (D-sub 9-pin (male) x 1) REMOTE 1 IN (M3 x 1); REMOTE 1 OUT (M3 x 1) REMOTE 2 IN (D-sub 9-pin (female) x 1) LAN (RJ-45 x 1); USB connector (Type A) DC OUT (USB Type A for power supply, DC 5 V, 2A) Expansion Slot (one slot for function boards | ||
| 燈泡型號 | NA | ||
| 可選購配件 | Ceiling Mount Bracket (high ceilings ET-PKD120H / low ceilings ET-PKD120S); ET-PKD130H (with 6-axis adjustment mechanism); TY-SB01QS (12G-SDI Terminal Board); TY-SB01WP (Wireless Presentation System Receiver Board); TY-SB01DL (Digital Link Terminal Board); ET-PKD130B (Attachment for Ceiling Mount Bracket); AJ-WM50 Series (Wireless Module); ET-YFB200G/ET-YFB100G (Digital Link Switcher / Digital Interface Box); TY-WPS1 (basic set) (Wireless Presentation System PressIT); ET-NUK10 (NFC Upgrade Kit); ET-SWR10 (Real-Time Tracking Projection-Mapping System); ET-SWA100 Series (Early Warning Software) | ||
| 可選購鏡頭 | 可選購鏡頭 | ET-C1U100 (0.308-0.330:1) ET-C1W300 (0.550-0.690) ET-C1W400 (0.680-0.950:1) ET-C1W500 (0.940-1.39:1) ET-C1S600 (1.36-2.10:1) ET-C1T700 (2.07-3.38:1) | |
| 變焦鏡頭 | ET-C1U100 (0.308–0.330:1) ET-C1W300 (0.550-0.690:1) ET-C1W400 (0.680–0.950:1) ET-C1W500 (0.940–1.39:1) ET-C1S600 (1.36–2.10:1) ET-C1T700 (2.07-3.38:1) | ||
| 原裝配件 | Software CD-ROM Wireless / wired remote control & batteries Power cord | ||
