專業用Solid Shine 3-DLP 投影機
PT-RQ35K
HK$1,180,000
-
光度輸出: 32,000 流明 (中央部份)；對比度 : 20000:1
-
解像度 : 4K (3840x2400)(Quad Pixel Drive: ON)
-
採用Laser diode 光源，可長時間使用
產品概覽
- 光度輸出: 32,000 流明 (中央部份)；對比度 : 20000:1
-
解像度 : 4K (3840x2400)(Quad Pixel Drive: ON)
-
用Laser diode 光源，可長時間使用
-
光亮色彩控制技術,可同步平衡多部投影機之亮度色彩
-
備用輸入功能，主輸入訊源故障時可自動切換至備用訊源
-
載置全新DIGITAL LINK功能，兼容HDbaseT技術的數碼連接，可以單－電纜傳送數碼訊號 (最長100米)至投影機
-
內置幾何調整功能，可投射畫面至弧型表面而不會失真，更可選配升級套件ET-UK20，提高幾何調整功能
-
可選購數碼介面盒ET-YFB100G 或 ET-YFB200G
- 可選購NFC升級軟件ET-NUK10及高幀率升級軟件ET-SUK10
規格
 專業用Solid Shine 3-DLP 投影機 | |||
|---|---|---|---|
| 投影機 | |||
| 一般規格 | |||
| 面板 | 0.96" 3-Chip DLP™ projector | ||
| 燈泡 | N.A. (Laser diodes 光源) | ||
| 亮度 | 32,000流明(中央部份) | ||
| 鏡頭 | 選配 | ||
| 對比度 | 20,000:1 | ||
| 解像度 | 4K (3840 x 2400 pixels) | ||
| 兼容視頻訊號 | - | ||
| 影像大小(對角) | 70" - 1000" | ||
| 鏡頭移動功能 | 垂直 ±55%, 橫向 ±20% (個別鏡頭移動範圍請參閱宣傳單張) | ||
| 梯型矯正範圍 | Vertical: ±45 ° (± 40 ° with ET-D75LE10/ET-D3LEW10/ET-D75LE20/ET-D3LES20, ±28 ° with ET-D75LE6/ET-D3LEW60, ±22 ° with ET-D3LEW50, ±15 ° with ET-D3LEW200, ±8 ° with ET-D3LEU100, +5 ° with ET-D75LE95), Horizontal: ±40 ° (±15 ° with ET-D3LEW50/ET-D75LE6/ET-D3LEW60, ±5 ° with ET-D3LEU100/ET-D3LEW200, 0 ° with ET-D75LE95) When [VERTICAL KEYSTONE] and [HORIZONTAL KEYSTONE] are used simultaneously, correction cannot be made exceeding a total of 55 ° | ||
| 重量 | 大約 69.8 kg | ||
| 大小(闊x高x深) | 598 x 353 x 780 mm | ||
| 功率 | 2550W | ||

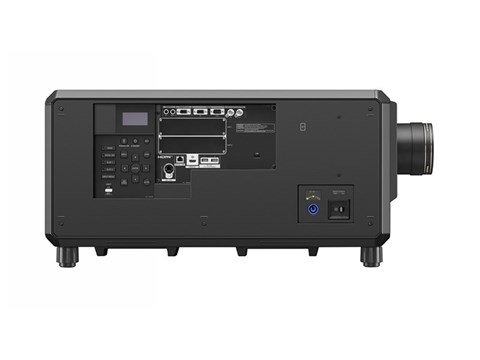

| 接駁終端 | HDMI IN : HDMI x 1 (Deep Color, compatible with HDCP 2.2, 4K/60p signal input) MULTI PROJECTOR SYNC IN : BNC x 1 MULTI PROJECTOR SYNC OUT : BNC x 1 SERIAL IN : D-sub 9-pin (female) x 1 for external control (RS-232C compliant) SERIAL OUT : D-sub 9-pin (male) x 1 for link control (RS-232C compliant) REMOTE 1 IN : M3 stereo mini-jack x 1 for wired remote control REMOTE 1 OUT : M3 stereo mini-jack x 1 for link control REMOTE 2 IN : D-sub 9-pin (female) x 1 for external control (parallel) DIGITAL LINK : RJ-45 x 1 for network and DIGITAL LINK connection (HDBaseT™ compliant), 100Base-TX, compatible with Art-Net, PJLink™ (Class 2), Deep Color, HDCP 2.2, 4K/60p signal input LAN : RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible USB : USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series)/USB Memory Stick DC OUT : USB Type A x 2 (for power supply, DC 5 V total of 2 A) Expansion slot : SLOT 1/SLOT 2 (total two terminals, vacant) for interface boards, SLOT NX compatible | ||
| 燈泡型號 | NA | ||
| 可選購配件 | ET-D3LEF70 Fisheye Lens ET-D75MKS10 Stepping Motor Kit AJ-WM50 Series Wireless Module ET-YFB200G DIGITAL LINK Switcher ET-YFB100G Digital Interface Box ET-SWA100 Series Early Warning Software ET-NUK10 NFC Upgrade Kit ET-MDN12G10 Interface Board for 12G-SDI Input (Input x 2, Input/Output x 2) ET-MDNFB10 Interface Board for 12G-SDI Optical (Input x 1, Input/Output x 1) ET-MDNHM10 Interface Board for HDMI® (HDCP 2.2) Input (Input x 2) ET-MDNDV10 Interface Board for DVI Input (Input x 2) ET-MDNDP10 Interface Board for DisplayPort™ (Input x 2) | ||
| 可選購鏡頭 | 變焦鏡頭 | ET-D3LEW200 (0.645–0.850:1) ET-D3LEW60 (0.924–1.10:1) ET-D75LE6 (0.924–1.10:1) ET-D3LEW10 (1.26–1.72:1) ET-D75LE10 (1.30–1.67:1) ET-D3LES20 (1.67–2.41:1) ET-D75LE20 (1.67–2.41:1) ET-D3LET30 (2.40–4.66:1) ET-D75LE30 (2.40–4.66:1) ET-D3LET40 (4.61–7.41:1) ET-D75LE40 (4.62–7.38:1) ET-D3LET80 (7.34–13.8:1) ET-D75LE8 (7.34–13.8:1) | |
| 固定焦距鏡頭 | ET-D75LE95 (0.364:1) ET-D3LEU100 (0.370:1) ET-D3LEW50 (0.694:1) | ||
| 原裝配件 | Power cord x 1, Lens hole cover x 1 , Wireless/wired remote control unit x 1, Batteries for remote control (AA/R6 type x 2), Lens fixing screw x 1 | ||
