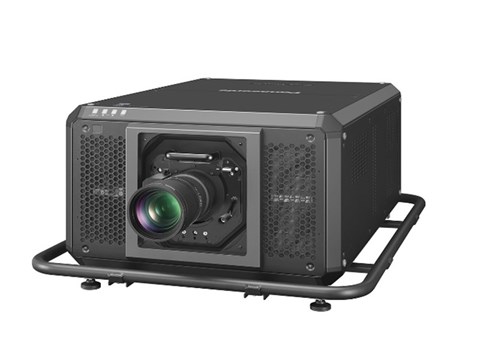

3片式DLP投影機
PT-RQ50K
HK$1,980,000
-
光度輸出: 51,000 流明 (中央部份)；對比度 : 20,000:1
- 解像度: 原生4K (4096 x 2160 點)
- 採用Laser diode 光源，可長時間使用
產品概覽
-
光度輸出: 51,000 流明 (中央部份)；對比度 : 20,000:1
- 解像度: 原生4K (4096 x 2160 點)
- 採用Laser diode 光源，可長時間使用
- 原裝液冷系統確保投影穩定性
- 擴展的色域完善了50,000 lm 原生4K體驗
- 遠程預覽節省了時間和不必要的壓力
- NFC 功能
規格
 3片式DLP投影機 | |||
|---|---|---|---|
| 投影機 | |||
| 一般規格 | |||
| 面板 | 1.38" 3片式DLP投影機 | ||
| 燈泡 | N.A. (Laser diodes 光源) | ||
| 亮度 | 50,000流明 / 51,000流明(中央部份) | ||
| 鏡頭 | 選配 | ||
| 對比度 | 20,000:1 (Full On/Full Off, Dynamic Contrast Mode: 3) | ||
| 解像度 | Native 4K (4096 x 2160 pixels) | ||
| 兼容視頻訊號 | -- | ||
| 影像大小(對角) | 2.54–38.1 m (100–1,500 in) with new optional lens for PT-RQ50K, 17:9 aspect ratio | ||
| 鏡頭移動功能 | 垂直 ±45%, 橫向 ±16% (個別鏡頭移動範圍請參閱宣傳單張) | ||
| 梯型矯正範圍 | Vertical: ±40° (±28° with ET-D3QW300), Horizontal: ±40° (±15° with ET-D3QW300) | ||
| 重量 | 大約 126 kg | ||
| 大小(闊x高x深) | 720 x 445 x 1,070 mm | ||
| 功率 | 4,100 W (AC 100–120 V: 1,100 W, Standby Mode: 6 W) | ||
| 接駁終端 | MULTI PROJECTOR SYNC IN : BNC x 1 MULTI PROJECTOR SYNC OUT : BNC x 1 SERIAL IN : D-sub 9-pin (female) x 1 for external control (RS-232C compliant) SERIAL OUT : D-sub 9-pin (male) x 1 for link control (RS-232C compliant) REMOTE 1 IN : M3 stereo mini-jack x 1 for wired remote control REMOTE 1 OUT : M3 stereo mini-jack x 1 for link control REMOTE 2 IN : D-sub 9-pin (female) x 1 for external control (parallel) DIGITAL LINK : RJ-45 x 1 for network and DIGITAL LINK connections (HDBaseT™ compliant), PJLink™ (Class 2) compatible, 100Base-TX, Art-Net compatible, HDCP 2.2 compatible, Deep Color compatible LAN : RJ-45 x 1 for network connection, PJLink™ (Class 2) compatible, 10Base-T/100Base-TX, Art-Net compatible DC OUT : USB connector (Type A) x 2 for power supply only (DC 5 V, total of 2 A) USB : USB connector (Type A) x 1 for optional Wireless Module (AJ-WM50 Series) / USB Memory Stick Expansion Slot 1 : Interface Board for 12G-SDI (ET-MDN12G10) supplied Expansion Slot 2 : Optional interface boards, SLOT NX compatible | ||
| 燈泡型號 | NA | ||
| 可選購配件 | ET-MDN12G10 : Interface Board for 12G-SDI (Input x 2, Input/Output x 2) ET-MDNDV10 : Interface Board for DVI-D (Input x 2) ET-MDNHM10 : Interface Board for HDMI (HDCP 2.2) Input (Input x 2) ET-MDNDP10 : Interface Board for DisplayPort™ (Input x 2) AJ-WM50 : Wireless Module ET-SWA100 : Early Warning Software ET-NUK10 : NFC Upgrade Kit ET-YFB200G : DIGITAL LINK Switcher ET-YFB100G : Digital Interface Box | ||
| 可選購鏡頭 | 變焦鏡頭 | ET-D3QS400 (1.43~2.09:1) ET-D3QT500 (2.00~3.41:1 ) ET-D3QT600 (2.69~3.88:1) ET-D3QT700 (3.89~5.47:1) ET-D3QT800 (4.97~7.76:1) ET-D3QW300 (1.11~1.70:1) | |
| 原裝配件 | Power cord x 1, 12G-SDI Input Board x 1, Lens hole cover x 1 , Wireless/wired remote control unit x 1, Batteries for remote control (AA/R | ||
