HK$454,000
光度輸出: 16,800 流明 (中央部份);對比度 : 25000:1
解像度 : WUXGA (1920x1200)(Quad Pixel Drive: ON)
採用Laser diode 光源,可長時間使用

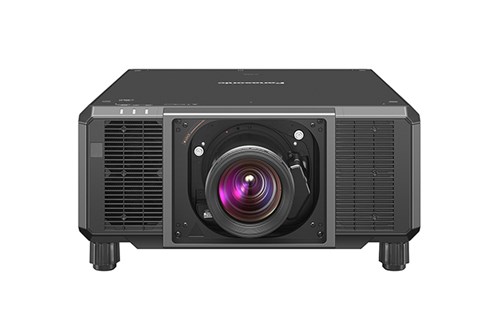

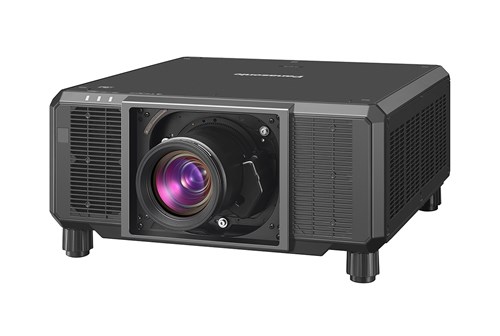

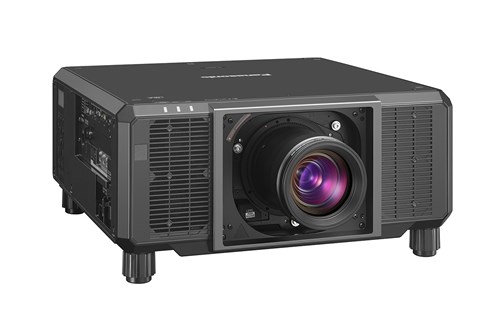

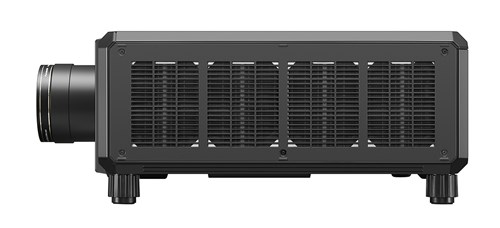

專業用Solid Shine 3-DLP 投影機 | |||
---|---|---|---|
投影機 | |||
一般規格 | |||
面板 | 0.8" DLP 底板 x 3 | ||
燈泡 | N.A. (Laser diodes 光源) | ||
亮度 | 16,800流明(中央部份) | ||
鏡頭 | 選配 | ||
對比度 | 25,000:1 | ||
解像度 | WUXGA (1920x1200)(Quad Pixel Drive: ON) | ||
兼容視頻訊號 | -- | ||
影像大小(對角) | 70" - 1000" | ||
鏡頭移動功能 | 垂直 ±66%, 橫向 ±24% (個別鏡頭移動範圍請參閱宣傳單張) | ||
梯型矯正範圍 | 垂直 ±45° (個別鏡頭矯正範圍請參閱宣傳單張); 橫向±40° | ||
重量 | 大約 35 kg | ||
大小(闊x高x深) | 550 x 220 x 570 mm | ||
功率 | 1010W | ||
接駁終端 | HDMI x 2; DisplayPort x 1 Multi Porjector Sync IN/ 3D Sync 1 ON/OUT (BNC x 1); Multi Porjector Sync OUT 3D Sync 2 OUT (BNC x 1) SERIAL IN (D-sub 9-pin (female) x 1) ; SERIAL OUT (D-sub 9-pin (male) x 1) REMOTE 1 IN (M3 x 1); REMOTE 1 OUT (M3 x 1) REMOTE 2 IN (D-sub 9-pin (female) x 1) LAN (RJ-45 x 1); USB connector (Type A) DC OUT (USB Type A for power supply, DC 5 V, 2A) Expansion Slot (one slot for function boards, Intel® SDM compatible) | ||
燈泡型號 | NA | ||
可選購配件 | Fisheye Lens ET-D3LEF70; Ceiling Mount Bracket (high ceilings ET-PKD520H / low ceilings ET-PKD520S); 12G-SDI Terminal Board TY-SB01QS; DIGITAL LINK Terminal Board TY-SB01DL; Wireless Presentation System Receiver Board TY-SB01WP; | ||

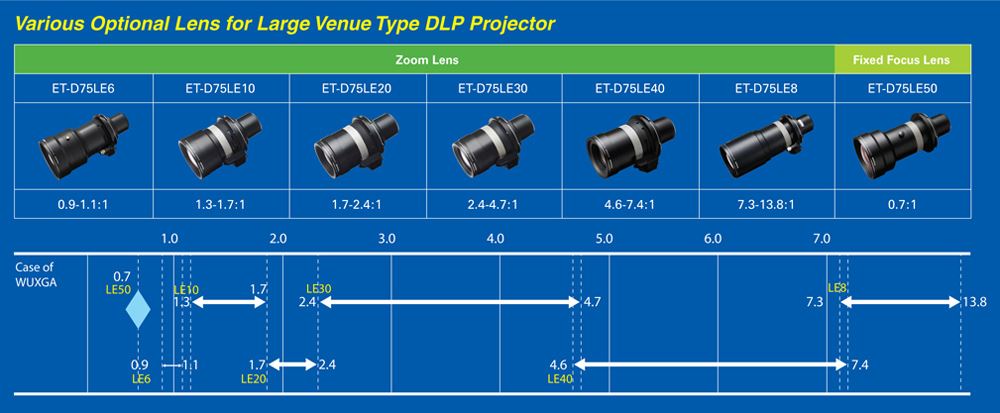

可選購鏡頭 | 變焦鏡頭 | ET-D3LEW10 (1.52–2.07:1) ET-D3LES20/ET-D75LE20 (2.00–2.90:1) ET-D3LET30 (2.88–5.61:1) ET-D3LET40 (5.54–8.90:1) ET-D3LEW60/ET-D75LE6 (1.12–1.32:1) ET-D3LET80/ET-D75LE88 (8.83–16.6:1) ET-D3LEW200 (0.779–1.02:1) ET-D75LE10 (1.56–2.01:1) ET-D75LE30 (2.89–5.61:1) ET-D75LE40 (5.55–8.86:1) | |
固定焦距鏡頭 | ET-D3LEW50 (0.838:1) ET-D3LEU100 (0.447:1) ET-D75LE95 (0.436:1) | ||
原裝配件 | Batteries for remote control unit Wireless / wired remote control Power cord Lens fixing screw Lens hole cover SLOT adaptor |
